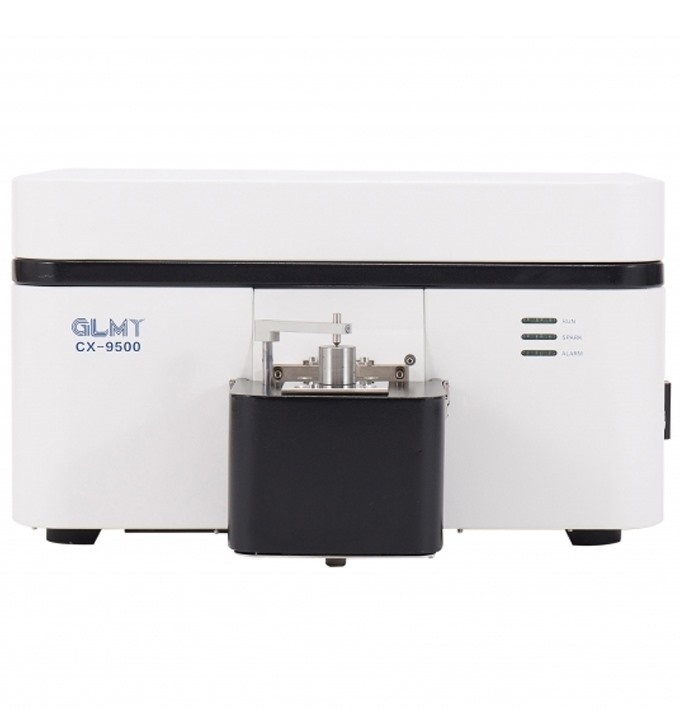

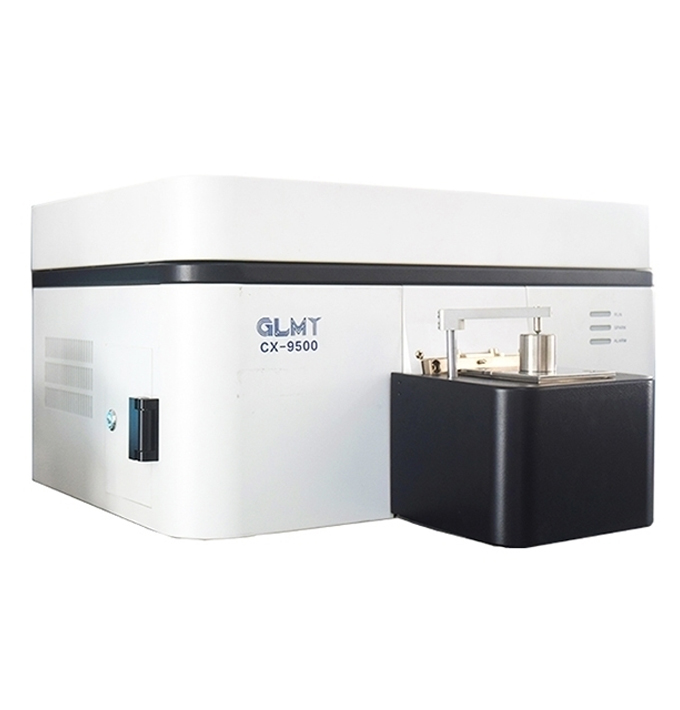

CX-9500 spectrometer provides the ideal performance and fit for product assurance testing and material identification. This spectrometer delivers maximum confidence and reliability based on CCD technology.
CX-9500 spectrometer is most suitable instruments for the determination of various elements in different matrices. In steel, raw iron, cast iron, non-ferrous metal production a fully or even partially automated analysis results in a cost reduction. In order to meet individual requirements, modular systems have been developed for laboratory automation. This also gives the user a truly spectrometer with multi-base capability (Fe, Al, Cu, Zn, Ti, Ni, Pb, etc) that’s both easy to use and space saved.
1.High accuracy and affordable.
2.Complete analysis within a few seconds.
3.Optimized to customer requirements and optimal advisory services.
4. Extreme sensitivity due to latest CCD technology and software.
5. Adding additional analysis modules without any change of hardware.
6. Technology support and software update for free.
7. Wavelength coverage 170nm-800nm, permitting simultaneous analysis for up to 31 elements.
8. Available for routine analysis of small sample, diameter from 1mm to 8mm.
9. Humanized design, configuring as a bench top or floor model with storage possibilities for consumables and spares.

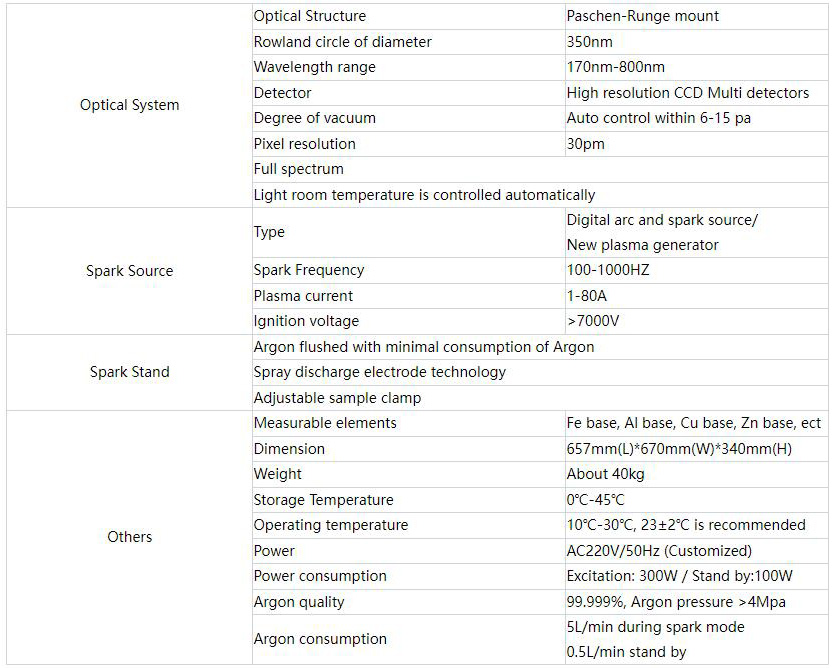

Optical System	Optical Structure	Paschen-Runge mount
	Rowland circle of diameter	350nm
	Wavelength range	170nm-800nm
	Detector	High resolution CCD Multi detectors
	Degree of vacuum	Auto control within 6-15 pa
	Pixel resolution	30pm
	Full spectrum
	Light room temperature is controlled automatically
Spark Source	Type	Digital arc and spark source/ New plasma generator
	Spark Frequency	100-1000HZ
	Plasma current	1-80A
	Ignition voltage	>7000V
Spark Stand	Argon flushed with minimal consumption of Argon
	Spray discharge electrode technology
	Adjustable sample clamp
Others	Measurable elements	Fe base, Al base, Cu base, Zn base, ect
	Dimension	657mm(L)670mm(W)340mm(H)
	Weight	About 40kg
	Storage Temperature	0℃-45℃
	Operating temperature	10℃-30℃, 23±2℃ is recommended
	Power	AC220V/50Hz (Customized)
	Power consumption	Excitation: 300W / Stand by:100W
	Argon quality	99.999%, Argon pressure >4Mpa
	Argon consumption	5L/min during spark mode 0.5L/min stand by

CX-9500 spectrometer is designed by Wuxi Create Analytical Instrument Co., LTD. By using the CCD technology, the CX-9500 is a preferred choice for the analysis of the elements concentration in metal. This instrument is widely used in the areas of metallurgy, foundry, machinery, automobile manufacturing, aerospace industry, weapon manufacture, metal processing and other fields.

Name：CX-9500 SPECTROMETER
